Complete solution for network troubleshooting and monitoring.
The ST-1000 SecureTap can be installed between any two network endpoints, such as firewalls, routers, switches or servers to allow passive monitoring of all data traffic flow. The SecureTap allows un-interrupted traffic flow between these network end points and makes a copy of the data flowing through it, and provides the packet copy to network monitoring appliances or tools for troubleshooting, security or recording purposes.
Download SecureTap DataSheet

Simple

Zero Configuration plug and play device

Gigabit Ready

Monitor traffic on gigabit ports with auto sensing 10/100/1000

Optional Redundant Power

Second power supply
Optional**

Aggregation/Non-Aggregation Mode

Simple user selectable switch allows easy switching between aggregation & non-aggregation mode. Check our FAQ for more details.
Aggregation mode also creates identical copies of the aggregated data on the tapped network link. This mode allows 2 monitoring tools to be connected.
Non-aggregating mode allows the port to run at full line rate, without dropping traffic. You need to use 2 ports on your monitoring device to watch both sides of the network link.

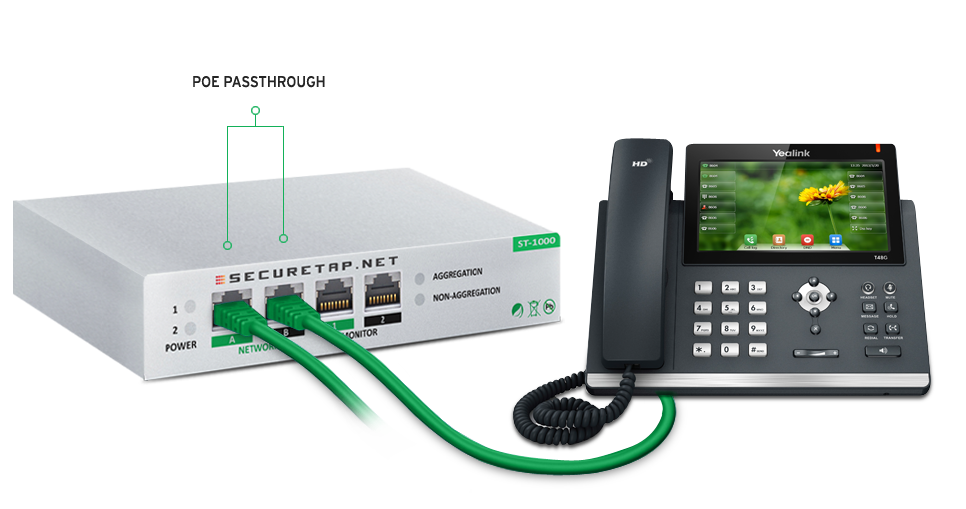

PoE Passthrough

Live network ports support PoE passthrough. e.g. allowing monitoring of SIP traffic on a phone handset that requires power via PoE

Network Taps

Network TAPs: Networks TAPs are one of today's best methods for creating permanent, inline, monitoring ports for your packet analyzers, IDS & Data retention compliance devices. They are inserted between network devices where they copy data continuously 24/7 without compromising your network.

COMMVIEW NETWORK ANALYSIS
&
MONITORING TOOLS


CommView


A powerful network monitor and analyzer designed for LAN administrators, security professionals, network programmers, home users. Capture every packet on the wire to display important information such as a list of packets and network connections, vital statistics, protocol distribution charts, and so on. You can examine, save, filter, import and export captured packets, view protocol decodes down to the lowest layer with full analysis of over 100 supported protocols.
Free 30 Day Trial

Commview VoIP


CommView includes a VoIP analyzer for in-depth analysis, recording, and playback of SIP and H.323 voice communications. Real-time capture and analyze Internet telephony (VoIP) events, such as call flow, signaling sessions, registrations, media streams, errors, etc. By visualizing this data and assessing voice quality, this tool helps you boost productivity in debugging VoIP networks, software, and hardware.
Free 30 Day Trial

HIGH PERFORMANCE FOR A LOW PRICE

10/100/1000 Link Aggregation Tap with 2 - 10/100/1000 Monitoring Ports, Redundant AC power capable, region specific power cables and rack mounting bracket included.


Features

PORTS

Network: One (1) 10/100/1000 Network Tap (RJ45)
Monitoring: Two (2) 10/100/1000 Any-to-Any Ports (RJ45)

CERTIFICATIONS

CE, RoHS, CAN ICES-3 (A)/NMB-3(A), FCC Part 15 Class B

WEIGHT

12 oz. (0.34 kgs)


ENVIRONMENT

Operating Temp: 32° to 104°F (0° to 40°C)
Storage Temperature: -22° to 149°F (-30° to 65°C )
Humidity: 5 to 90%

POWER REQUIREMENTS

Two (2) External AC Adapters ( One (1) included) Input: 100-240 VAC, 50-60Hz, Max. 50mA at 120VAC

PHYSICAL DIMENSIONS (H x W x D)

1.07 x 5.00 x 5.00 in (2.7 x 12.72 x 12.7 cm)

WARRANTY

One (1) Year Hardware Warranty included Advanced Replacement-Next Day, 3rd Business Day, and return to factory options available

Included Equipment

Rack mount bracket

Affordable Packages

All prices in USD. Online store will take you to PayPal. You can pay using your PayPal account or your CreditCard. To order using a company PO or over the phone contact us.

Basic

$749



Network Pro

$999



VoIP Pro

$1299



If you would like more information or have any question(s) on the
SecureTap ST-1000, Please fill out the form below:
